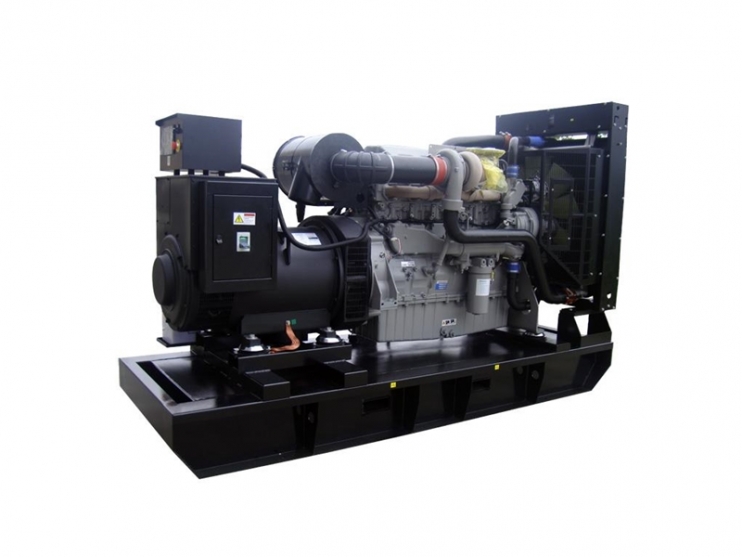

7kw-2000kw Perkins Engine Generator

Perkins generator set is made up of Perkins diesel engine plus Stamford generator, Leroy Somer generator or FMW brushless generator with Deepsea,ComAp or Smartgen generator control modules.

Power Range:7kw to 2000kw

Both Open Frame Generator And Canopy Type Generator


  • Item NO.:

    MCP
  • Payment:

    TT/LC
  • Product Origin:

    China
  • Shipping Port:

    Fuzhou
  • Lead Time:

    21 Weekdays
  • Product Detail

Perkins generator is driven by diesel engines made in Perkins Engines Company Limited with a glorious history, and now, the Perkins engine is also manufactured in China by a joint-venture diesel engine factory with original Perkins spares and technology. Perkins generator set has small volume, light weight, reliable performance, low fuel-consumption. The exhaust emission of Perkins diesel generator set achieves German TALUFT standard, American EPA Tier 3 standard, EU-Ⅲstandard. The power range of Perkins genset is from 7kw up to 2000kw.

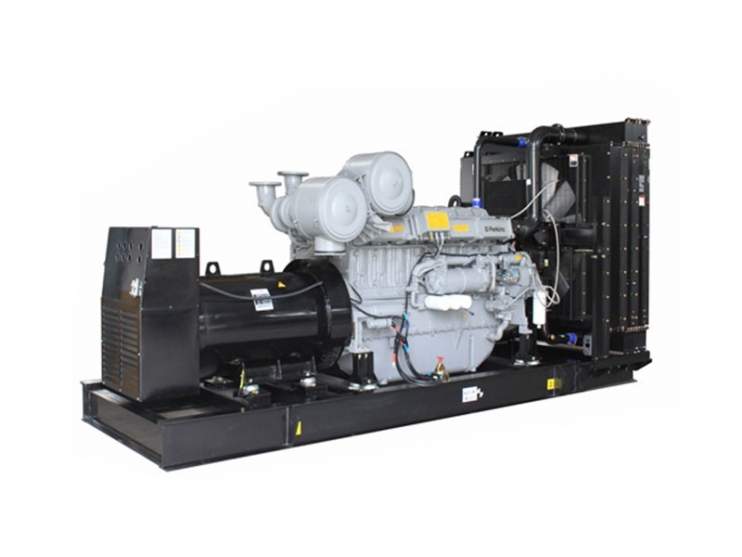

perkins engine generating set

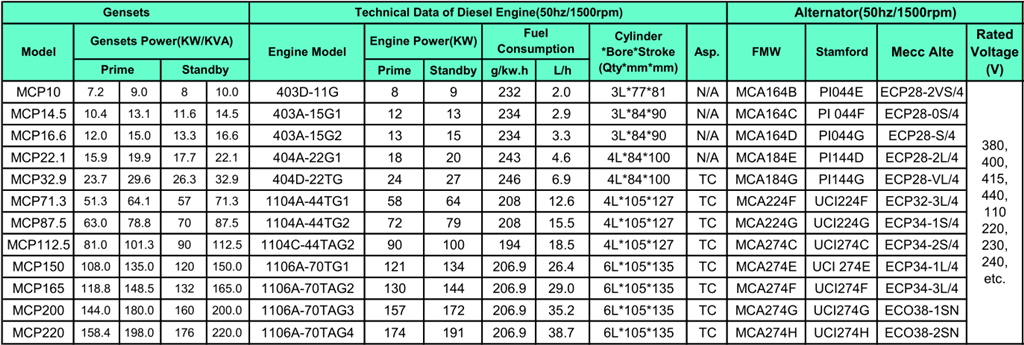

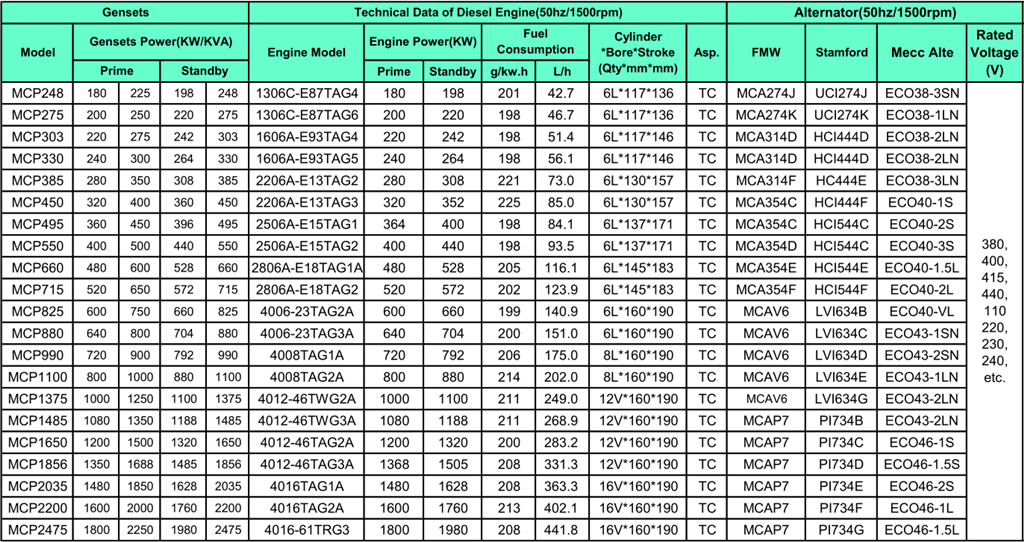

1. Perkins Engine Generator Main Specification

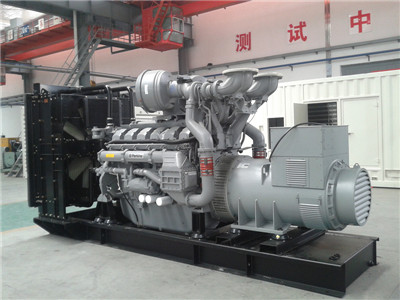

Wuxi Perkins Generator

generator set perkins engine England Perkins Generatorgenset perkins engine

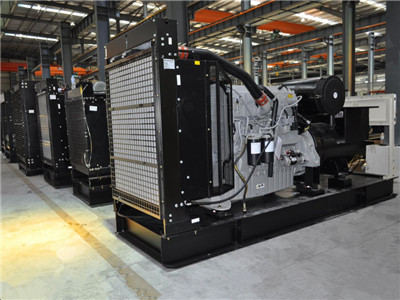

2. Perkins Generator Set

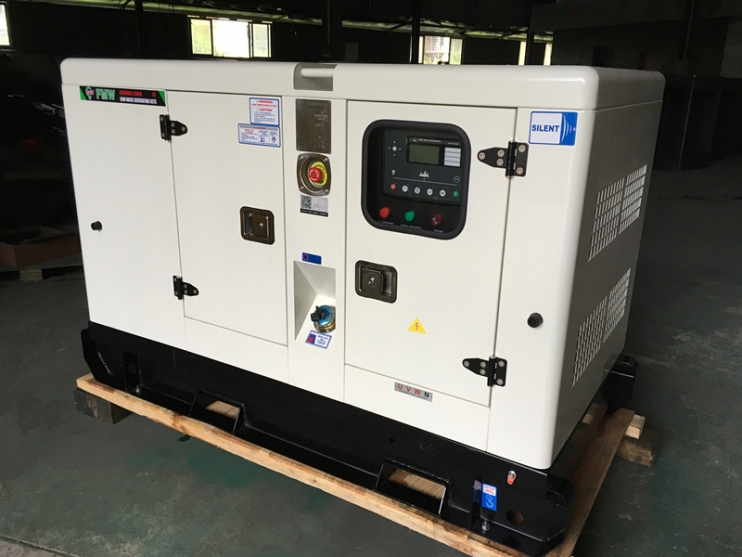

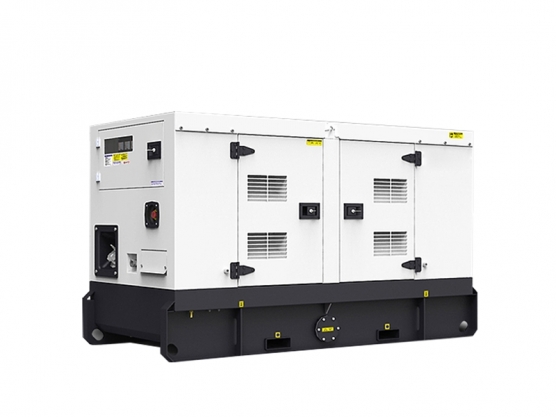

 perkins emergency generator set generating set perkins

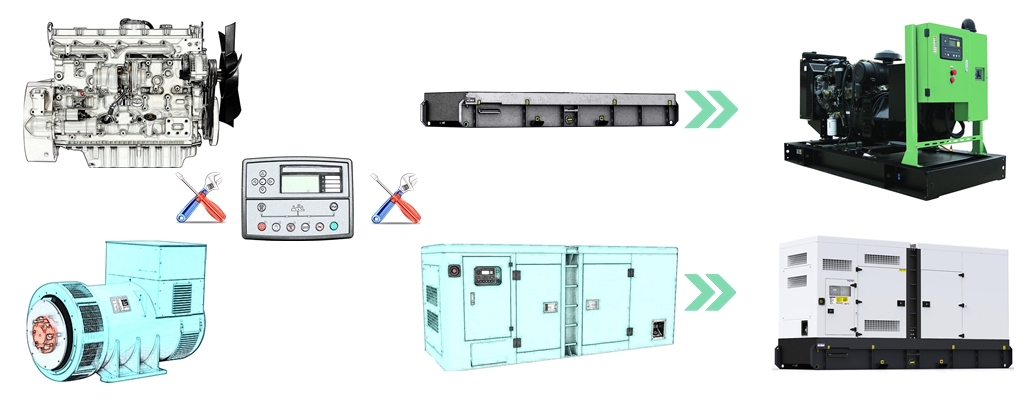

3. Generator Features And Supply Scope

Standard Parts

Optional Parts

Brand-new Ricardo,Lijia,and Styer series diesel engine

Original Stamford,Leroy Somer and Mecc Alte alternator

Brand-new Brushless MCA alternator(Class H,IP23,AVR)

Automatic Transfer Switch (A.T.S) generator  control system

Heavy duty steel base frame with 8 hours fuel tank

Paralleling generator control system

2MM-4MM steel soundproof canopy for silent generator

Customized fuel tank bigger than 8 hours running

Safety guard radiator with protection net

Heavy duty 50brass Radiator

Heavy duty rubber anti-vibration damper

Deepsea7320,Smartgen6110 or ComAp AMF25 generator controller

Heavy duty industrial type silencer with flexible mouth

Water heater/lub-oil heater for extremely cold weather

State-standard high performance non-maintenance battery

Electronics such as ABB,Schneider and Siemens

Deepsea6020,Smartgen420 or ComAp MRS11 generator controller

Cumtomized super silent canopy with high-density sponge

Low oil pressure,overheating,overload,and overspeed protections

Special part as stainless-steel keys,oil drain pump,dust filter etc

State-standard electronics such as cable,circuirt breaker, relay,lamp, fuse, stop device.

Extra engine and alternator spares as filter,gasket,nozzle,AVR,rectifier

Tool kit with operation manuals of genset,engine,and alternator

Deluxe tool kit box with varieties of tools for maintenance


4. Criterion And Certificate

generating set perkins engine


5. Advantage Of Our Diesel Generator

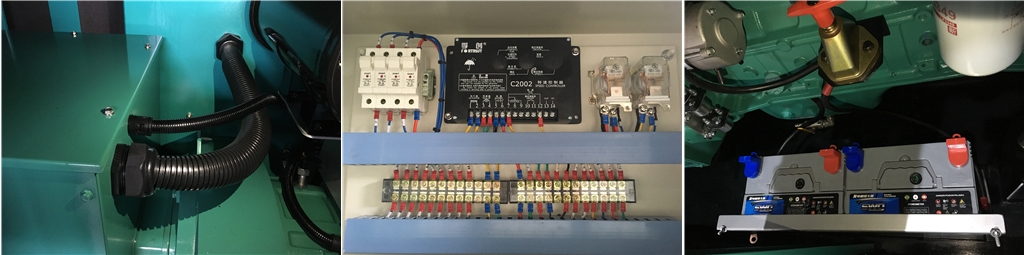

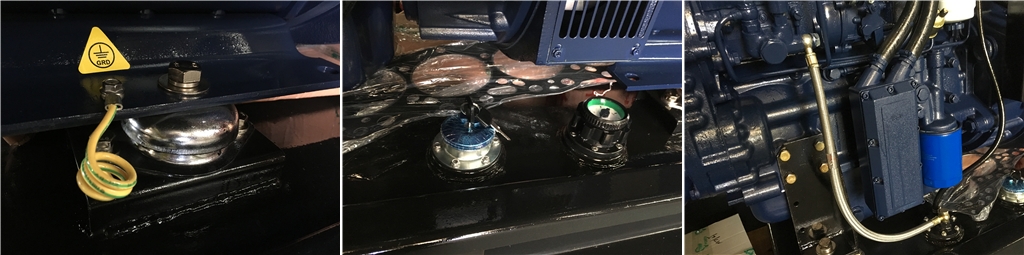

① High-Standard materials and spares

●  From screws,bearings,noise sponges,wires,vibration-absorber,relay,AVR,diode,gauges,pines, to copper-wire, steel plates,meters,controllers,battery,AMF,ATS and so on.

emergency generator set perkins

perkins genset

② High-Educated and Experienced Research And Development team

● With a highly-professional research and development team,not only can FMW power manufactuer standard reliable quality generator but also FMW power can design different kinds of generator such as super silent generator,container power station,intelligent generator according to client's unique demands.

genset perkins

③ Reliable Performance And Criterion

Voltage Regulation:

●  Free-load voltage setting range≥(95-105)%Un

●  Steady-state voltage regulation rate≤±1.0﹪

●  Transient-state voltage regulation rate≤+20﹪/-15%

●  Voltage recovery time≤1.0S

●  Voltage fluctuation ratio≤±0.5﹪

●  Cold/hot-state voltage ratio≤2﹪

Frequency/Speed Undulation:

● Change load from 0-100%, Frequency/Speed Droop Ratio within 5%.

● Load from 25-100%, any steady load Frequency/Speed undulation within 0.25%

Telecom Effect Factor:

● TIF( MA MG1-22) better than 50

● THF( BS EN60034) better than 2%

Criterion:

● ISO8528, GB/T2820

● EN12601:2001, EN60034-22:1997, EN60204-1:2006

● ISO9001:2008 Quality Control System

● Insulating Resistance Tested in accordance with GB5226.1-2002-19.3

● Withstand-Voltage Tested in accordance with GB755-2000-8.1(with 1500V by 60S)

● All electric spares tested in accordance with GB5226.1-2002-19.6

● Mechanical Security tested in accordance with GB/T820.8-2002-6.3

● Fire-Proof tested in accordance with GB/T2820.8-2002-6.4/6.5

● All generator sets are inspected strictly  by 25%,50%,75%,100% and 110% Load.
