12kw-300kw Ricardo/Steyr Engine Generator

Ricardo/Steyr generator set is made up of Ricardo/Steyr series diesel engine plus FMW brushless AC generator with Deepsea,ComAp or Smartgen generator control modules.

Power Range:12kw to 300kw

Both Open Frame Generator And Canopy Type Generator

  • Item NO.:

    MCR
  • Payment:

    TT/LC
  • Product Origin:

    China
  • Shipping Port:

    Fuzhou
  • Lead Time:

    21 Weekdays
  • Product Detail

Weifang Ricardo/Steyr Generator is researched and developed by technology of original Ricardo/Steyr engine from British and Austria. This kind of K, R and WT series diesel generator is honored by more than 100 years continuous history, and Ricardo/Steyr generator set attracts lots of users because of its extremely competitive price(nearly the cheapest generator) and fairly reliable quality. FMW power only cooperates with some prominent Ricardo/Steyr engine factories those who always use standard spares and also strictly inspect engines before EX-WORK. The power range of Ricardo genset is from 12kw up to 300kw.

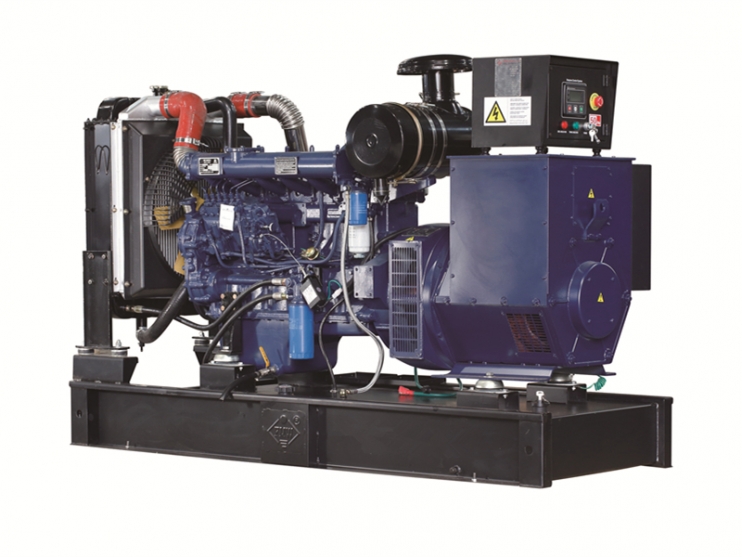

generator set ricardo

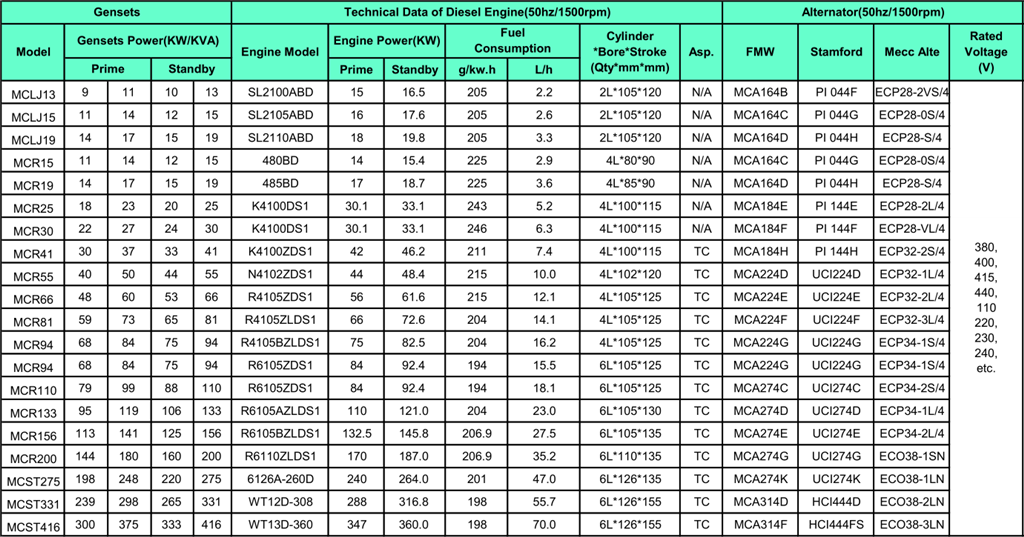

1. Ricardo/Steyr Engine Generator Main Specification

generating set ricardo

Note: From 200kw up to 300kw is powered by Steyr type diesel engine.

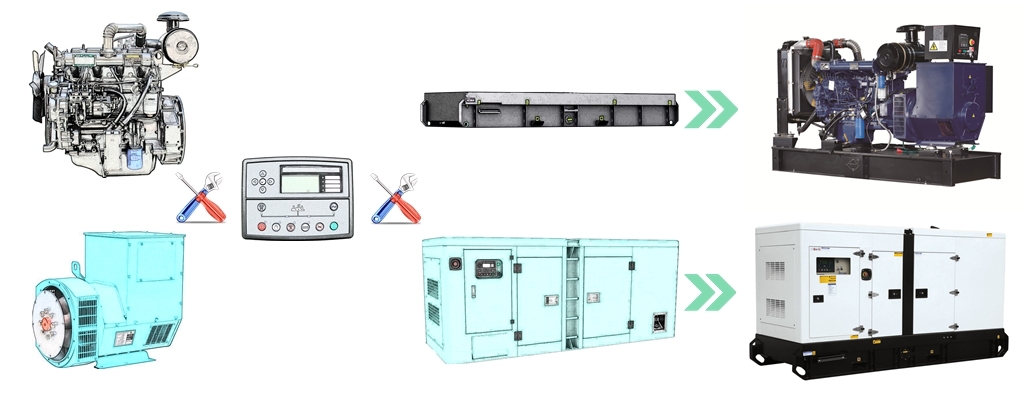

2. Ricardo/Steyr Generator Set




3. Generator Features And Supply Scope

 Standard Parts

 Optional Parts

 Brand-new Ricardo,Lijia,and Styer series diesel engine

 Original Stamford,Leroy Somer and Mecc Alte alternator

 Brand-new Brushless MCA alternator(Class H,IP23,AVR)

 Automatic Transfer Switch (A.T.S) generator  control system

 Heavy duty steel base frame with 8 hours fuel tank

 Paralleling generator control system

 2MM-4MM steel soundproof canopy for silent generator

 Customized fuel tank bigger than 8 hours running

 Safety guard radiator with protection net

 Heavy duty 50brass Radiator

 Heavy duty rubber anti-vibration damper

 Deepsea7320,Smartgen6110 or ComAp AMF25 generator controller

 Heavy duty industrial type silencer with flexible mouth

 Water heater/lub-oil heater for extremely cold weather

 State-standard high performance non-maintenance battery

 Electronics such as ABB,Schneider and Siemens

 Deepsea6020,Smartgen420 or ComAp MRS11 generator controller

 Cumtomized super silent canopy with high-density sponge

 Low oil pressure,overheating,overload,and overspeed protections

 Special part as stainless-steel keys,oil drain pump,dust filter etc

 State-standard electronics such as cable,circuirt breaker, relay,lamp, fuse, stop device.

 Extra engine and alternator spares as filter,gasket,nozzle,AVR,rectifier

 Tool kit with operation manuals of genset,engine,and alternator

 Deluxe tool kit box with varieties of tools for maintenance


4. Criterion And Certificate

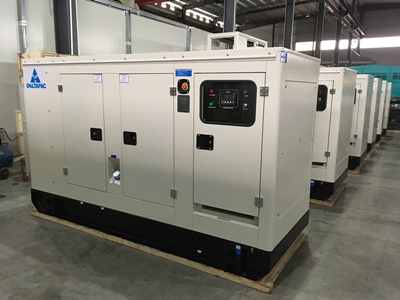

ricardo low noise generator

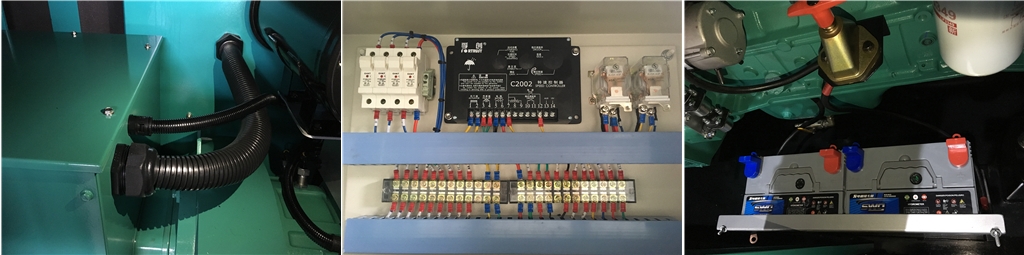

5. Advantage Of Our Diesel Generator

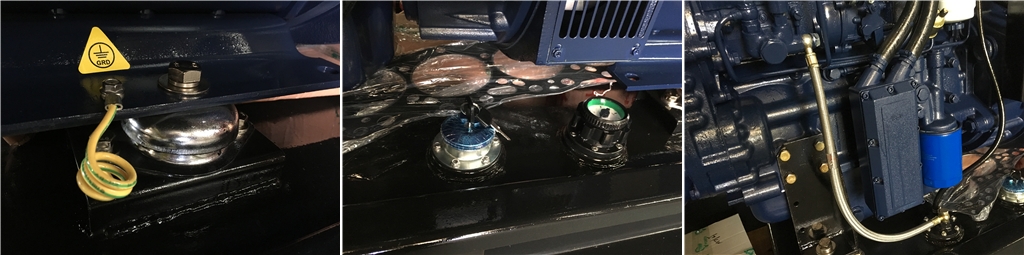

① High-Standard materials and spares

●  From screws,bearings,noise sponges,wires,vibration-absorber,relay,AVR,diode,gauges,pines, to copper-wire, steel plates,meters,controllers,battery,AMF,ATS and so on.

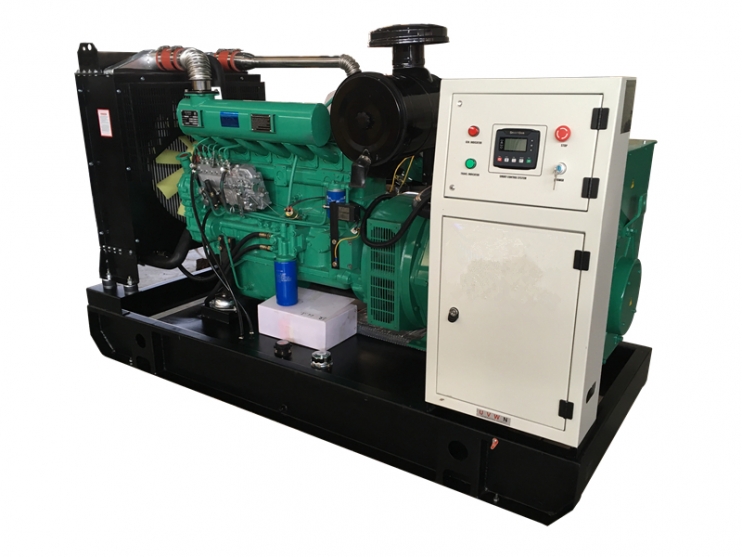

ricardo engine generator set

ricardo genset

② High-Educated and Experienced Research And Development team

● With a highly-professional research and development team,not only can FMW power manufactuer standard reliable quality generator but also FMW power can design different kinds of generator such as super silent generator,container power station,intelligent generator according to client's unique demands.

genset ricardo

③ Reliable Performance And Criterion

Voltage Regulation:

●  Free-load voltage setting range≥(95-105)%Un

●  Steady-state voltage regulation rate≤±1.0﹪

●  Transient-state voltage regulation rate≤+20﹪/-15%

●  Voltage recovery time≤1.0S

●  Voltage fluctuation ratio≤±0.5﹪

●  Cold/hot-state voltage ratio≤2﹪

Frequency/Speed Undulation:

● Change load from 0-100%, Frequency/Speed Droop Ratio within 5%.

● Load from 25-100%, any steady load Frequency/Speed undulation within 0.25%

Telecom Effect Factor:

● TIF( MA MG1-22) better than 50

● THF( BS EN60034) better than 2%

Criterion:

● ISO8528, GB/T2820

● EN12601:2001, EN60034-22:1997, EN60204-1:2006

● ISO9001:2008 Quality Control System

● Insulating Resistance Tested in accordance with GB5226.1-2002-19.3

● Withstand-Voltage Tested in accordance with GB755-2000-8.1(with 1500V by 60S)

● All electric spares tested in accordance with GB5226.1-2002-19.6

● Mechanical Security tested in accordance with GB/T820.8-2002-6.3

● Fire-Proof tested in accordance with GB/T2820.8-2002-6.4/6.5

● All generator sets are inspected strictly  by 25%,50%,75%,100% and 110% Load.
