Ricardo & Steyr generator set is made up of Ricardo or Steyr series diesel engine plus FMW brushless AC generator with Deepsea,ComAp or Smartgen generator control modules. Power Range:12kw to 400kw Both Open Frame Generator And Canopy Type Generator
Low Noise Generator ranging from 8kw to 150kw is the small-sized silent diesel generator set.
Low Noise Generator ranging from 150kw to 500kw is the medium-sized silent diesel generator set.
Cummins generator set is made up of Cummins diesel engine plus Stamford generator, Leroy Somer generator or FMW brushless generator with Deepsea, ComAp or Smartgen generator control modules. Power Range:24kw to 1800kw Both Open Frame Generator And Canopy Type Generator
Lovol generator set is made up of Lovol diesel engine plus Stamford generator, Leroy Somer generator or FMW brushless generator with Deepsea,ComAp or Smartgen generator control modules. Power Range:24kw to 160kw Both Open Frame Generator And Canopy Type Generator
(12kw-41kw) FMW brushless alternator of this output scope is precisely designed and manufactured to match original Stamford AC generator PI144 series including technical specification, each and every spares, and appearance design.
Low Noise Generator ranging from 150kw to 500kw is the medium-sized silent diesel generator set.
Item NO.:
GFSPayment:
TT/LCProduct Origin:
ChinaShipping Port:
FuzhouLead Time：
21 Weekdays

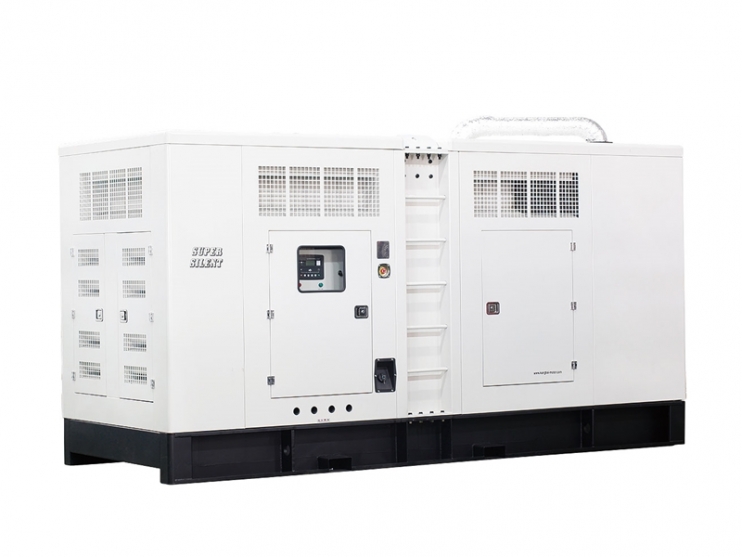

Low Noise Generator 150kw up to 500kw of FMW power is medium size silent diesel generator powered with 6 cylinders or small bore*stroke 8 and 12 cylinders diesel generator engine who is built for a small scale factory or a medium size building such as hospitals, hotels, small villages and so on.
1. Silent Diesel Generator (150kw-500kw)

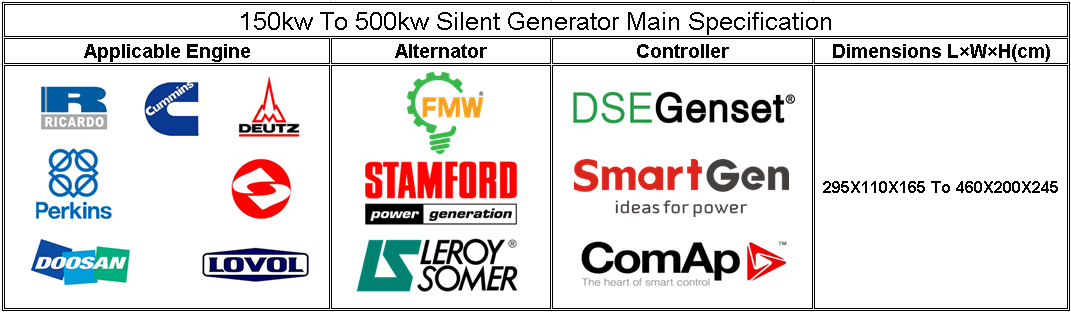

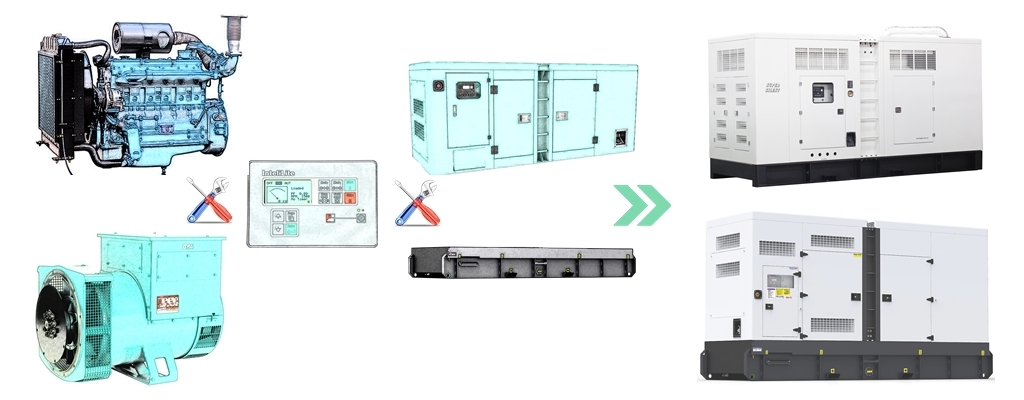

2. Generator Supply Scope
Standard
Parts
Optional
Parts
Brand-new
Ricardo,Lijia,and Styer series diesel engine
Original Stamford,Leroy Somer and Mecc Alte
alternator
Brand-new Brushless MCA
alternator(Class H,IP23,AVR)
Automatic Transfer Switch (A.T.S) generator
control system
Heavy duty steel base
frame with 8 hours fuel tank
Paralleling generator control system
2MM-4MM steel
soundproof canopy for silent generator
Customized fuel tank bigger than 8 hours running
Safety guard radiator
with protection net
Heavy duty 50℃brass Radiator
Heavy duty rubber
anti-vibration damper
Deepsea7320,Smartgen6110 or ComAp AMF25 generator
controller
Heavy duty industrial
type silencer with flexible mouth
Water heater/lub-oil heater for extremely cold weather
State-standard high
performance non-maintenance battery
Electronics such as ABB,Schneider and Siemens
Deepsea6020,Smartgen420
or ComAp MRS11 generator controller
Cumtomized super silent canopy with high-density
sponge
Low oil
pressure,overheating,overload,and overspeed protections
Special parts such as
stainless-steel key,oil drain pump,dust filter etc.
State-standard electronics
such as cable, circuirt breaker, relay, lamp, fuse, stop device.
Extra engine and
alternator spares as filter,gasket,nozzle,AVR,rectifier.
Tool kit with operation
manuals of generator, engine, and alternator
Deluxe tool kit box
with varieties of tools for maintenance.
3. Criterion And Certificate
① High-Standard materials and spares.
● From screws,bearings,noise sponges,wires,vibration-absorber,relay,AVR,diode,gauges,pines, to copper-wire, steel plates,meters,controllers,battery,AMF,ATS and so on.
② High-Educated and Experienced Research And Development team
● With a highly-professional research and development team,not only can FMW power manufactuer standard reliable quality gensets but also FMW power can design different kinds of gensets such as super silent generator,container power station,intelligent generator according to client's unique demands.
③ Reliable Performance And Criterion
Voltage Regulation:
● Free-load voltage setting range≥(95-105)%Un
● Steady-state voltage regulation rate≤±1.0﹪
● Transient-state voltage regulation rate≤+20﹪/-15%
● Voltage recovery time≤1.0S
● Voltage fluctuation ratio≤±0.5﹪
● Cold/hot-state voltage ratio≤2﹪
Frequency/Speed Undulation:
● Change load from 0-100%, Frequency/Speed Droop Ratio within 5%.
● Load from 25-100%, any steady load Frequency/Speed undulation within 0.25%
Telecom Effect Factor:
● TIF( MA MG1-22) better than 50
● THF( BS EN60034) better than 2%
Criterion:
● ISO8528, GB/T2820
● EN12601:2001, EN60034-22:1997, EN60204-1:2006
● ISO9001:2008 Quality Control System
● Insulating Resistance Tested in accordance with GB5226.1-2002-19.3
● Withstand-Voltage Tested in accordance with GB755-2000-8.1(with 1500V by 60S)
● All electric spares tested in accordance with GB5226.1-2002-19.6
● Mechanical Security tested in accordance with GB/T820.8-2002-6.3
● Fire-Proof tested in accordance with GB/T2820.8-2002-6.4/6.5
● All generator sets are inspected strictly by 25%,50%,75%,100% and 110% Load.
Low Noise Generator ranging from 3kw to 6kw is the most compact silent diesel generator set.
Low Noise Generator ranging from 8kw to 150kw is the small-sized silent diesel generator set.
Low Noise Generator ranging from 500kw to 800kw is the big-sized silent diesel generator set.
Low Noise Generator ranging from 800kw to 1500kw is the gigantic-sized silent diesel generator set.
Ricardo & Steyr generator set is made up of Ricardo or Steyr series diesel engine plus FMW brushless AC generator with Deepsea,ComAp or Smartgen generator control modules. Power Range:12kw to 400kw Both Open Frame Generator And Canopy Type Generator
(364kw-660kw) FMW brushless alternator of this output scope is precisely designed and manufactured to match original Stamford AC generator HCI544 series including technical specification, each and every spares, and appearance design.
Low Noise Generator ranging from 3kw to 6kw is the most compact silent diesel generator set.
Low Noise Generator ranging from 500kw to 800kw is the big-sized silent diesel generator set.
