8kW To 150kW Low Noise Generator

Low Noise Generator ranging from 8kw to 150kw is the small-sized silent diesel generator set.

  • Item NO.:

    GFS
  • Payment:

    TT/LC
  • Product Origin:

    China
  • Shipping Port:

    Fuzhou
  • Lead Time:

    21 Weekdays
  • Product Detail

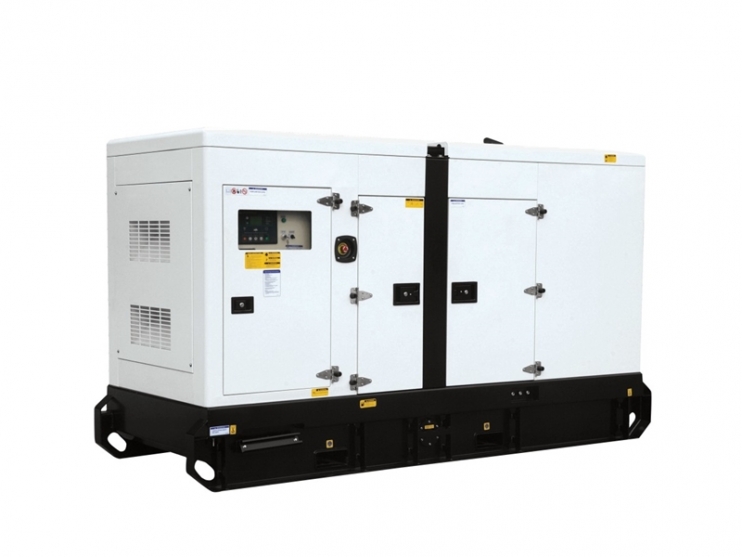

Low Noise Generator 8kw up to 150kw of FMW power is often silent diesel generator powered with compact 4 cylinders or 6 cylinders diesel generator engine and applied to a small farm or building. They can be designed to super silent generator set in a very compact dimension which are the most popular and highly demand soundproof diesel generator.

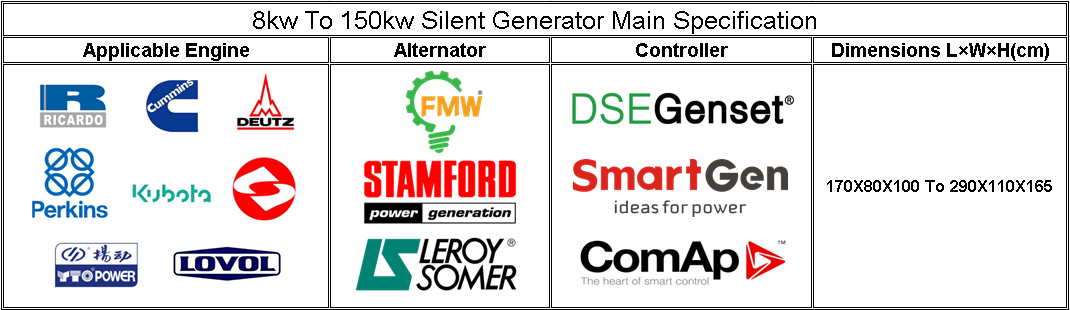

8kw to 150kw silent generator


1. Silent Diesel Generator (8kw-150kw)

compact silent generator


2. Generator Supply Scope

 Standard Parts

 Optional Parts

 Brand-new Ricardo,Lijia,and Styer series diesel engine

 Original Stamford,Leroy Somer and Mecc Alte alternator

 Brand-new Brushless MCA alternator(Class H,IP23,AVR)

 Automatic Transfer Switch (A.T.S) generator control system

 Heavy duty steel base frame with 8 hours fuel tank

 Paralleling generator control system

 2MM-4MM steel soundproof canopy for silent generator

 Customized fuel tank bigger than 8 hours running

 Safety guard radiator with protection net

 Heavy duty 50brass Radiator

 Heavy duty rubber anti-vibration damper

 Deepsea7320,Smartgen6110 or ComAp AMF25 generator controller

 Heavy duty industrial type silencer with flexible mouth

 Water heater/lub-oil heater for extremely cold weather

 State-standard high performance non-maintenance battery

 Electronics such as ABB,Schneider and Siemens

 Deepsea6020,Smartgen420 or ComAp MRS11 generator controller

 Cumtomized super silent canopy with high-density sponge

 Low oil pressure,overheating,overload,and overspeed protections

 Special parts such as stainless-steel key,oil drain pump,dust filter etc.

 State-standard electronics such as cable, circuirt breaker, relay, lamp, fuse, stop device.

 Extra engine and alternator spares as filter,gasket,nozzle,AVR,rectifier.

 Tool kit with operation manuals of generator, engine, and alternator

 Deluxe tool kit box with varieties of tools for maintenance.


3. Criterion And Certificate

low noise diesel generating set


4. Advantage Of Our Diesel Generator

① High-Standard materials and spares.

●  From screws,bearings,noise sponges,wires,vibration-absorber,relay,AVR,diode,gauges,pines, to copper-wire, steel plates,meters,controllers,battery,AMF,ATS and so on.

silent generator set china

perkins silent generator set

② High-Educated and Experienced Research And Development team

● With a highly-professional research and development team,not only can FMW power manufactuer standard reliable quality gensets but also FMW power can design different kinds of gensets such as super silent generator,container power station,intelligent generator according to client's unique demands.

silent generating set perkins

③ Reliable Performance And Criterion

Voltage Regulation:

●  Free-load voltage setting range≥(95-105)%Un

● Steady-state voltage regulation rate≤±1.0﹪

●  Transient-state voltage regulation rate≤+20﹪/-15%

●  Voltage recovery time≤1.0S

●  Voltage fluctuation ratio≤±0.5﹪

●  Cold/hot-state voltage ratio≤2﹪

Frequency/Speed Undulation:

● Change load from 0-100%, Frequency/Speed Droop Ratio within 5%.

● Load from 25-100%, any steady load Frequency/Speed undulation within 0.25%

Telecom Effect Factor:

● TIF( MA MG1-22) better than 50

● THF( BS EN60034) better than 2%

Criterion:

● ISO8528, GB/T2820

● EN12601:2001, EN60034-22:1997, EN60204-1:2006

● ISO9001:2008 Quality Control System

● Insulating Resistance Tested in accordance with GB5226.1-2002-19.3

● Withstand-Voltage Tested in accordance with GB755-2000-8.1(with 1500V by 60S)

● All electric spares tested in accordance with GB5226.1-2002-19.6

● Mechanical Security tested in accordance with GB/T820.8-2002-6.3

● Fire-Proof tested in accordance with GB/T2820.8-2002-6.4/6.5

● All generator sets are inspected strictly  by 25%,50%,75%,100% and 110% Load.
