800kW To 1500kW Low Noise Generator

Low Noise Generator ranging from 800kw to 1500kw is the gigantic-sized silent diesel generator set.

  • Item NO.:

    GFS
  • Payment:

    TT/LC
  • Product Origin:

    China
  • Shipping Port:

    Fuzhou
  • Lead Time:

    21 Weekdays
  • Product Detail

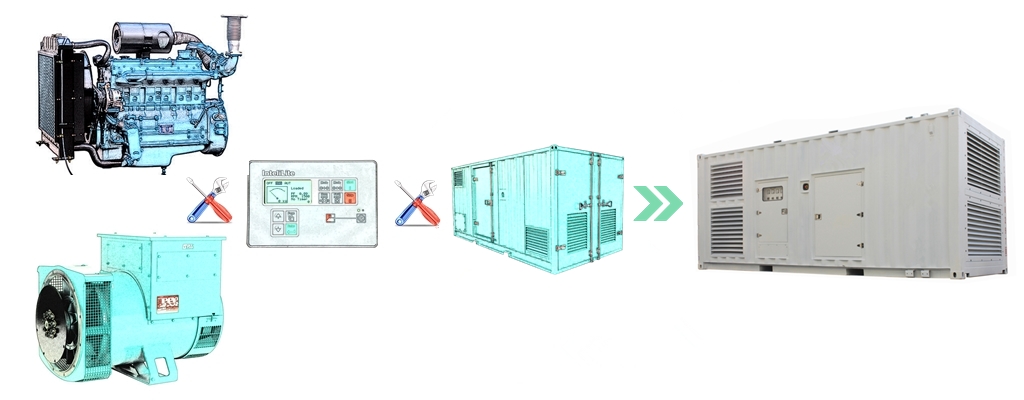

Low Noise Generator 800kw up to 1500kw of FMW power is the biggest and gigantic silent diesel generator power with 8, 12 or even 16 cylinders diesel generator engine. The soundproof canopy of this kind of silent generator is frequently modified from a used or brand-new container, so that it’s also called as container type generator. They are made for a big scale factory or an enormous building such as shopping malls, towns, big villages and so on.


container type generator

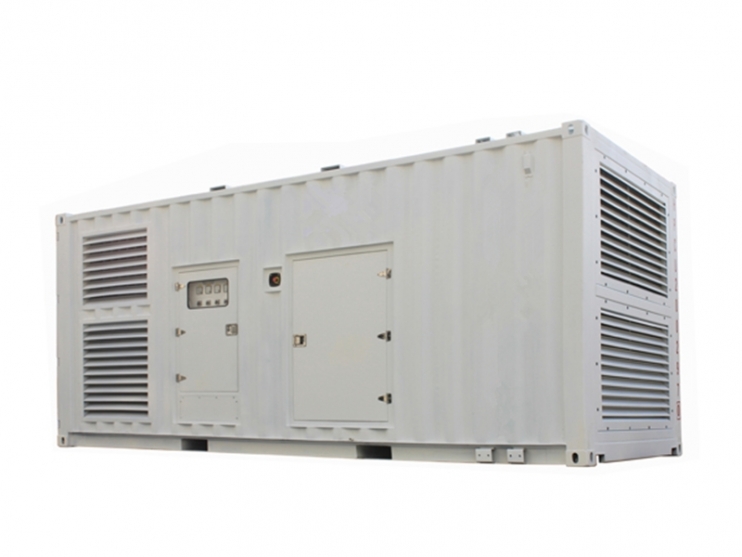

1. Silent Diesel Generator (800kw-1500kw)

800kw to 1500kw silent generator


2. Generator Supply Scope

Standard Parts

Optional Parts

Brand-new Ricardo,Lijia,and Styer series diesel engine

Original Stamford,Leroy Somer and Mecc Alte alternator

Brand-new Brushless MCA alternator(Class H,IP23,AVR)

Automatic Transfer Switch (A.T.S) generator control system

Heavy duty steel base frame with 8 hours fuel tank

Paralleling generator control system

2MM-4MM steel soundproof canopy for silent generator

Customized fuel tank bigger than 8 hours running

Safety guard radiator with protection net

Heavy duty 50brass Radiator

Heavy duty rubber anti-vibration damper

Deepsea7320,Smartgen6110 or ComAp AMF25 generator controller

Heavy duty industrial type silencer with flexible mouth

Water heater/lub-oil heater for extremely cold weather

State-standard high performance non-maintenance battery

Electronics such as ABB,Schneider and Siemens

Deepsea6020,Smartgen420 or ComAp MRS11 generator controller

Cumtomized super silent canopy with high-density sponge

Low oil pressure,overheating,overload,and overspeed protections

Special parts such as stainless-steel key,oil drain pump,dust filter etc.

State-standard electronics such as cable, circuirt breaker, relay, lamp, fuse, stop device.

Extra engine and alternator spares as filter,gasket,nozzle,AVR,rectifier.

Tool kit with operation manuals of generator, engine, and alternator

Deluxe tool kit box with varieties of tools for maintenance.


3. Criterion And Certificate

1000kva low noise generator


4. Advantage Of Our Diesel Generator


① High-Standard materials and spares.

●  From screws,bearings,noise sponges,wires,vibration-absorber,relay,AVR,diode,gauges,pines, to copper-wire, steel plates,meters,controllers,battery,AMF,ATS and so on.

silent emergency generating set

low noise emergency generating set

② High-Educated and Experienced Research And Development team

● With a highly-professional research and development team,not only can FMW power manufactuer standard reliable quality gensets but also FMW power can design different kinds of gensets such as super silent generator,container power station,intelligent generator according to client's unique demands.

silent genset china

③ Reliable Performance And Criterion

Voltage Regulation:

●  Free-load voltage setting range≥(95-105)%Un

● Steady-state voltage regulation rate≤±1.0﹪

●  Transient-state voltage regulation rate≤+20﹪/-15%

●  Voltage recovery time≤1.0S

●  Voltage fluctuation ratio≤±0.5﹪

●  Cold/hot-state voltage ratio≤2﹪

Frequency/Speed Undulation:

● Change load from 0-100%, Frequency/Speed Droop Ratio within 5%.

● Load from 25-100%, any steady load Frequency/Speed undulation within 0.25%

Telecom Effect Factor:

● TIF( MA MG1-22) better than 50

● THF( BS EN60034) better than 2%

Criterion:

● ISO8528, GB/T2820

● EN12601:2001, EN60034-22:1997, EN60204-1:2006

● ISO9001:2008 Quality Control System

● Insulating Resistance Tested in accordance with GB5226.1-2002-19.3

● Withstand-Voltage Tested in accordance with GB755-2000-8.1(with 1500V by 60S)

● All electric spares tested in accordance with GB5226.1-2002-19.6

● Mechanical Security tested in accordance with GB/T820.8-2002-6.3

● Fire-Proof tested in accordance with GB/T2820.8-2002-6.4/6.5

● All generator sets are inspected strictly  by 25%,50%,75%,100% and 110% Load.
